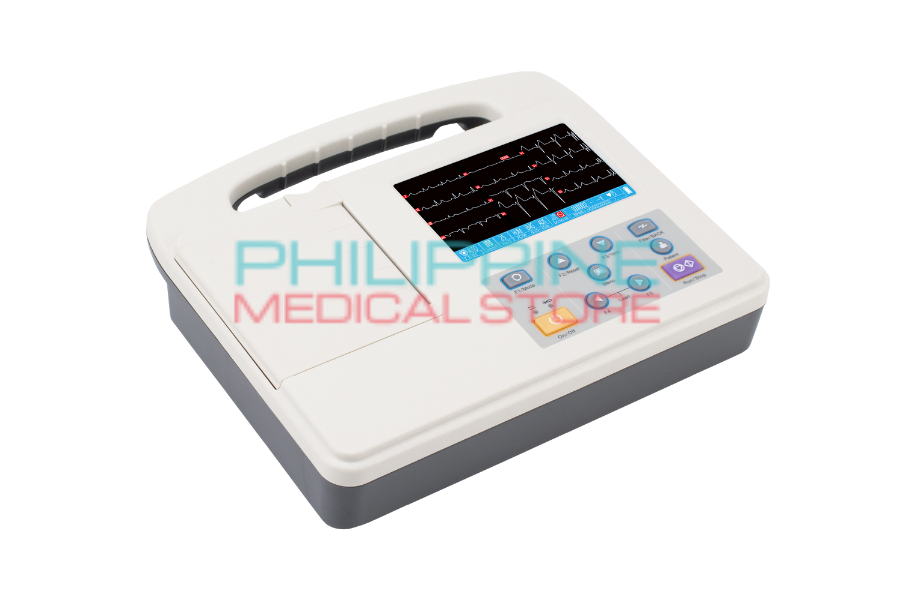

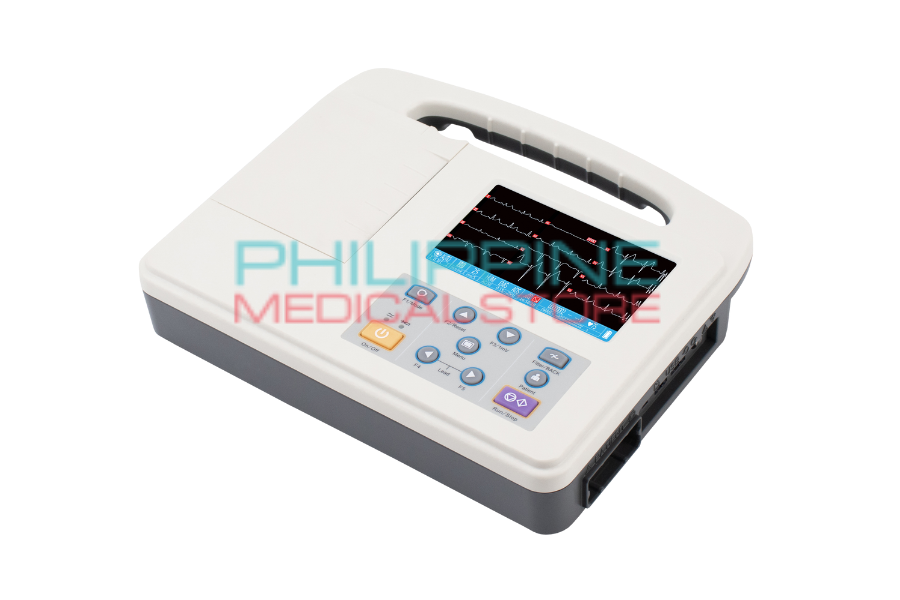

ECG Machine 3 Channel (GTECG-2303G)
The ECG-2303G is a compact and reliable 3-channel electrocardiograph designed for fast and accurate acquisition, display, recording, storage, and analysis of ECG signals. It collects ECG signals from body-surface electrodes, processes them through filtering, amplification, and A/D conversion, and presents clear ECG waveforms to support clinical diagnosis. Intended for use by trained healthcare professionals, it is suitable for adult, adolescent, and pediatric patients across medical institutions, ambulances, first-aid scenarios, and physical examination centers.
Specifications
Model: ECG-2303G
Leads: Standard 12 leads; synchronous acquisition
Work Modes: Manual, Auto, R-R (Rhythm), Store (Physical Examination)
Sampling Rate: 32000 Hz
Filters: AC 50/60 Hz; EMG 25/45 Hz; Anti-drift 0.15 Hz (adaptive)
CMRR: ≥120 dB (with AC filter)
Input Impedance: ≥50 MΩ
Patient Leakage Current: <10 μA
Calibrating Voltage: 1 mV ±2%
Frequency Response: 0.05–160 Hz (-3 dB)
Noise Level: <15 μVp-p
Sensitivity: 5, 10, 20, 40, Auto (mm/mV)
Recording Formats: 1ch×12+R; 3ch×4; 3ch×4+R; 1-minute rhythm lead
Paper Speed: 6.25, 12.5, 25, 50 mm/s (±3%)
Recording Paper: 80 mm × 20 m thermal roll (supports 30 m; gridless)
Display: 5-inch color LCD, 800 × 480
Internal Memory: 250 cases (extendable to 1000, optional)
Interfaces: USB, UART
Power: AC 75–265 V (±10%), 50/60 Hz, 60 VA; DC Li-ion battery 7.4 V 2000 mAh
Battery Life: ~8 hours standby; ~2.5 hours charging
Dimensions / Weight: 260 × 220 × 58 mm / 1.7 kg
Features
Compact, portable, ergonomic design for easy operation and mobile diagnostics.
Synchronous 12-lead acquisition with high-accuracy digital filtering, automatic baseline adjustment, and pacemaker pulse recognition.
Advanced automatic interpretation capable of analyzing over 200 types of abnormal ECG based on Minnesota Code.
High-resolution 3-channel thermal printing on 80-mm paper.
Multiple working modes and rich menu presets to meet diverse clinical needs.
Clear 5-inch color display showing ECG waveforms, patient data, parameters, status, and alerts.
Flexible data management with storage, replay, editing, and optional expansion and PC connectivity.
Main ECG unit
Patient cable (1 pc)
Chest electrodes (1 set)
Limb electrodes (1 set)
Thermal printing paper (1 roll)
Paper spindle (1 pc)
Power cord (1 pc)
Ground wire (1 pc)
Power adapter (1 pc)
Standard Packing: 1 unit per carton; carton size 39 × 34 × 21 cm; gross weight 4.0 kg; net weight 3.3 kg.
Bulk Packing: 4 units per carton; carton size 69 × 41 × 46 cm; gross weight 17.6 kg; net weight 13.2 kg.
Optional Functions: PC ECG management software (ECGNET), USB storage activation, UART cable, USB dongle.
Optional Accessories: Button-type or clamp-type patient cables, disposable electrodes, electrode adapters, pediatric chest and limb electrodes, conductive gel, carrying bag/case, trolley.
