Automated External Defibrillator AED
First Aid at Your Side!
As an expert in defibrillation technology, we understand that reliable products are not created overnight. They result from the accumulation of professional knowledge, long-term dedication, and meticulous attention to detail. Consequently, every AED shock delivered also represents our commitment to safety and quality, always.
Defibrillator specification
Type: Automated External Defibrillator
Model: A112
Mode: Adult, Pediatric
LCD Screen size (Model with LCD): 3.5 inch
LCD Resolution (Model with LCD): 320 (RGB) × 240
Waveform: Biphasic truncated exponential
Energy: 200 Joules max
Voice Prompt: Multiple languages to select
Visual Indicator: Color LCD and LED indicators
Charge Time (New, at 25°C): Less than 7 seconds to 150J; less than 3 seconds to 75J; less than 10 seconds to 200J; less than 3 seconds to 50J
Analysis Time: 9 seconds
Controls: Three buttons – ON/Off, Shock, Set
Output is disabled when the patient impedance is outside limits: 20Ω to 200Ω
Environment specification
Operating Temperature: 0°C to 50°C
Operating Humidity: Relative humidity between 15% and 95%
Atmospheric Pressure: 500hPa to 1060hPa
Storage and Transport Temperature: −20°C to 55°C
Particle and Water Ingress: IP-55 (Battery installed)
Drop and Shock Abuse Tolerance: IEC60601-1-12 (1 meter, onto any edge, corner, or surface while in standby mode)
1 × AED A112 main unit

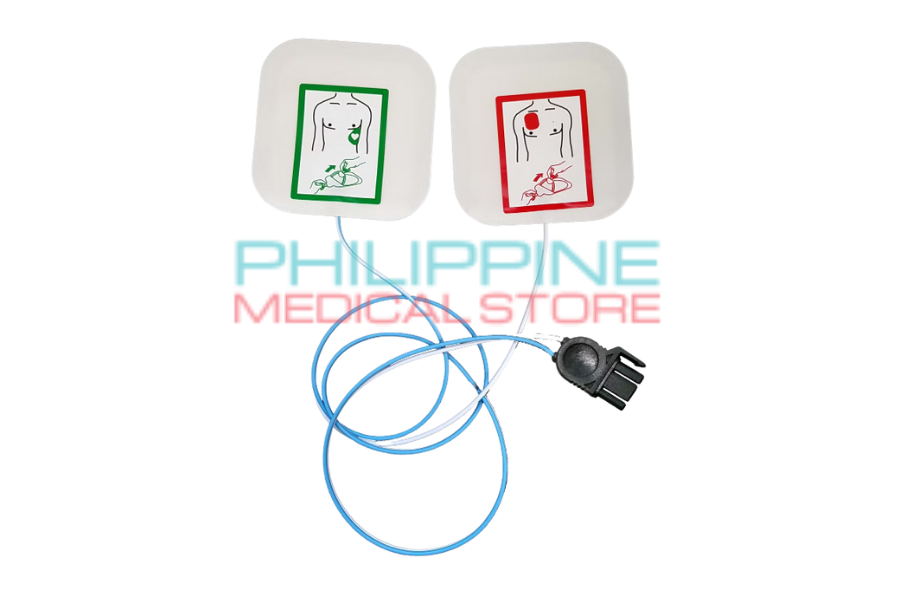

1 × Pair of adult defibrillation pads

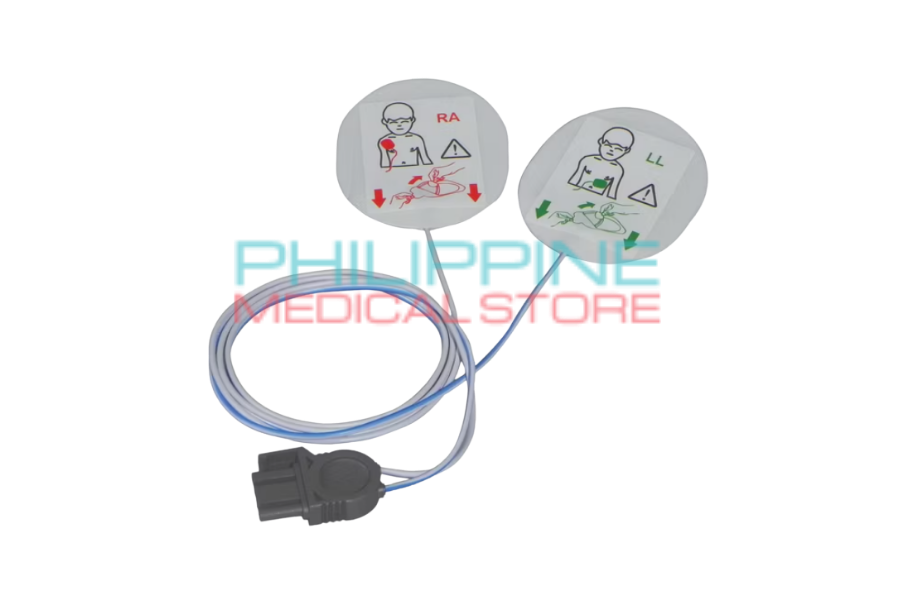

1 × Pair of pediatric defibrillation pads
1 × Non-rechargeable, LiMnO2 12V, 2.8Ah
1 × User manual
1 × Carrying case
Packed in a hard carrying case inside a color box with protective foam
Packaging size: 1 complete set per box
Box dimension: Approximately 32 × 28 × 18 cm
Available variation: Adult and Pediatric modes included
